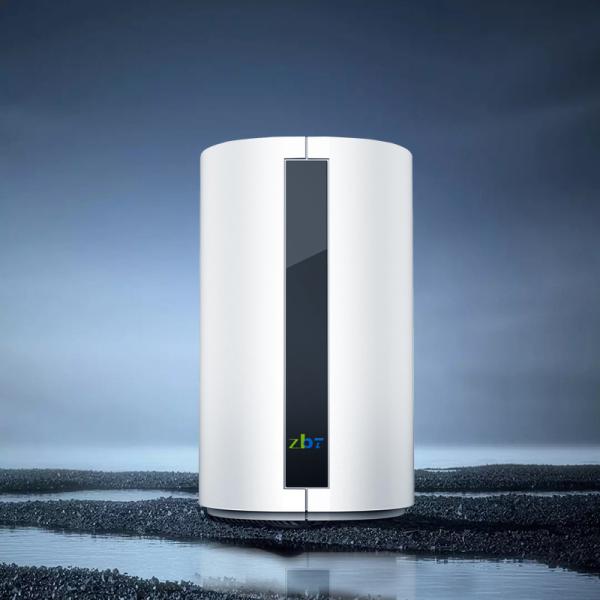

Wireless Indoor Wifi 6 Mesh Router White Color Plastic Case IPQ6000 CPU

Name: Wireless Indoor Wifi 6 Mesh Router White Color Plastic Case IPQ6000 CPU
Brand: ZBT&OEM
Price: 1 USD

Quality Wireless Indoor Wifi 6 Mesh Router White Color Plastic Case IPQ6000 CPU for sale

Brand Name : ZBT&OEM

Model Number : Z6001AX-M.2-C

Certification : CE ,FCC &roHs

Place of Origin : China

MOQ : Sample order :1pcs

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 30000pcs per Month

Delivery Time : 3-5 working days for sample order

Packaging Details : Paper carton,20pcs/carton

Wan ports : 1*10/100/1000 Mbps

Lan ports : 3*10/100/1000 Mbps

Main chipset : IPQ6000

Sim card slot : External Mini SIM card slot

Wi-fi supported frequency : 2.4GHz &5.8GHz

Antenna : Internal 3DB amtennas

Wireless speed : 1800Mbps

Flash/RAM : 128M nand flash/256M RAM

System : Openwrt or OS firmware

Contact Now

Wireless Router White Color Plastic Case IPQ6000 CPU 1800Mbps 2.4GHz 5.8GHz Indoor Mesh Wifi6 Strong Wifi Cover

1.1 Brief overview

This document describes the electrical characteristics, RF performance, dimensions and application environment of Z6001AX-,2-C. Under the introduction of this document, end users or developers can quickly understand the hardware functions of Z6001AX-M2-C.It is a WiFi 6 home router, which can access the Internet through WAN port, and then share the Internet through wireless WiFi 6 and 1000Mbps wired LAN.

Z6001AX-C specification.pdf

Features:

1).Support IEEE 802.11ax/ac/n/11b/g standard.

2).1*WAN+3*LAN 10/100/1000Mbps ports.

3)1* USB 3.0 data interface.

4).High speed 1800Mbps,dual band and gigabit ports.

5).M.2 interface,LCC/PCIE interface compatible design.

6).Support MESH automatic networking.

7).Standard SIM card slot.Support SIM/USIM card.

Hardware specs:

Ports	1*1000M WAN Port (Auto MDI/MDIX) IEEE 802.3/802.3u/802.ab
Ports	3* 1000M LAN Ports(Auto MDI/MDIX) IEEE 802.3/802.3u/802.ab
USB	1* USB3.0
DC port	DC5.0*2.1MM interface
Button	1* Reset button
antennas	2* internal omnidirectional 5dBi 2.4G antennas, 2* internal omnidirectional 5dBi 5.8G antennas

4.2 Function of indicator light

Power LED	Always on when the power is connected, not on when the power fails or is not connected to the power supply
WAN LED	The Internet port is always on, flashes when there is data communication, the network port comes with LED
LAN1 LED	The Internet port is always on, flashes when there is data communication, the network port comes with LED
LAN2 LED	The Internet port is always on, flashes when there is data communication, the network port comes with LED
LAN3 LED	The Internet port is always on, flashes when there is data communication, the network port comes with LED
5.8G LED	It is always on when the 5.8G WIFI function is enable,flashes when there is data communication, and it is not on when the 5.8G WIFI is not enable on or the 5.8G WIFI function is faulty.
2.4G LED	It is always on when the 2.4G WIFI function is enable,flashes when there is data communication, and it is not on when the 2.4G WIFI is not enable on or the 2.4G WIFI function is faulty.
SYS LED	1. The red light is on during the boot process, the boot is complete, the red light is off and the green light is on 2. Press the mesh button to enter the mesh pairing state, the green light flashes once a second, and the other lights are off 3. The main equipment network is normal, the green light and blue light are on at the same time (cyan) 4. The slave device MESH is successfully connected, the green light is on at a long distance, the red light is on at the same time (orange), the distance is suitable, the green light is on, and the blue light is on at the same time (cyan)
